Product Summary
The S1T8503X01-D0 is a low voltage speech network which includes Mic amp. transmit amp, side-tone amp, and receive amp.. It handles the voice signal performing the 2/4 wire interface and changing the gain on both sending and receiving amplifiers to compensate for line attenuation by sensing the line length through the line current. Each gain can be controlled by external component exchange. The receiver output driving capability is adjustable.
Parametrics
S1T8503X01-D0 absolute maximum ratings: (1)Line Voltage (3ms max): 22 V; (2)Forward Line Current ILF: 150 mA; (3)Reverse Line Current ILR: -150 mA; (4)Storage Temperature:–55 to +125 °C; (5)Power Dissipation (Ta = 70°C): 1 W; (6)Operating Temperature TOPR: -40 to + 70 °C.
Features
S1T8503X01-D0 features: (1)Adjust Sending and Receiving Attenuation Length; (2)Mute Function; (3)Side Tone Balance Network Constitution; (4)Low Voltage Operating; (5)AC Impedance Matching; (6)Uses Inexpensive Components; (7)Uses a minimum of external components (5 Capacitors & 10 Resistors).

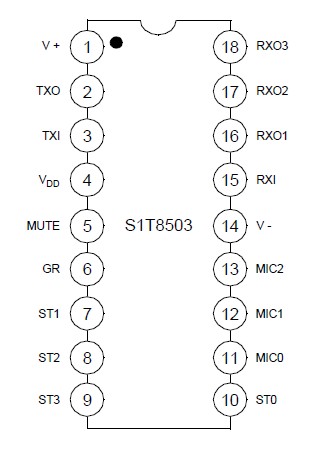

Diagrams
